Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G

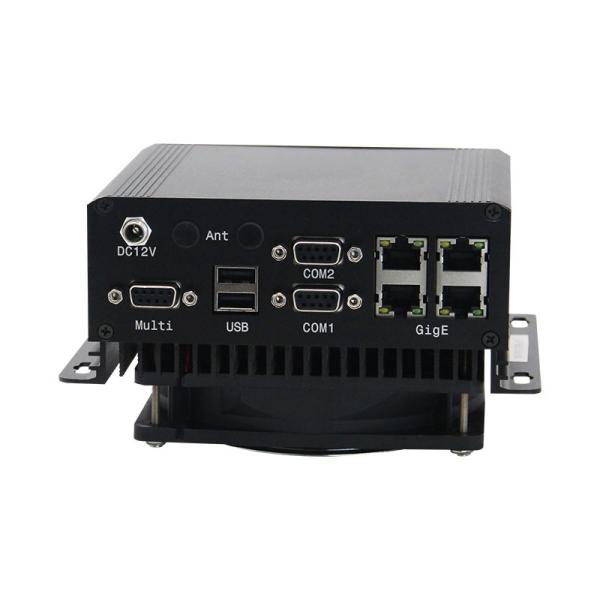

Rugged Embedded Systems NVIDIA Jetson Industrial PC Computer (TX2NX-SYS-2006)
The TX2NX-SYS-2006 is a compact AI industrial computer with NVIDIA Jetson TX2 NX core modules. is the embedded box pc For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model which is high performance embedded computing,TX2NX-SYS-2006 standard type can support 1/3/5 full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc., please contact our sales staff.NVIDIA Jetson TX2 NX, which can provide 1.33 TFLOPS of computing power in 15W power mode, 2.5 times the computing power of Jetson Nano, with 256 CUDA Cores, 6 ARM CPU cores, 4 GB 128-bit DDR4 memory, it Multiple network models can be run simultaneously of rugged embedded pc
NVIDIA Jetson TX2 NX Industrial Embedded Computer Product Features
| Factory pre-installed NVIDIA Jetson TX2 NX core module |
| Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors |
| Onboard Reset and Recovery buttons |
| Automatically start when power on |
| Optional 32GB ~ 1TB SSD expansion storage |
| Micro USB connector | 1 |
| HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz) | 1 |
| Working indicator light | 1 |
| Micro TF card connector | 1 |
| USB 3.1 Type-A connector | 1 |
| USB 2.0 Type1A connector | 2 |
| CAN bus interface with onboard transceiver | 1 |
| RS-232 level serial ports | 2 |
| Nano SIM card connector | 1 |
| 3.3V bit programmable GPIO | 3 |
1 bit programmable GPO with 3.3V strong drive capability
Product size: 160mm×130mm×65mm
Power requirements: DC +9V~+24V
Working temperature: -20~+65℃
